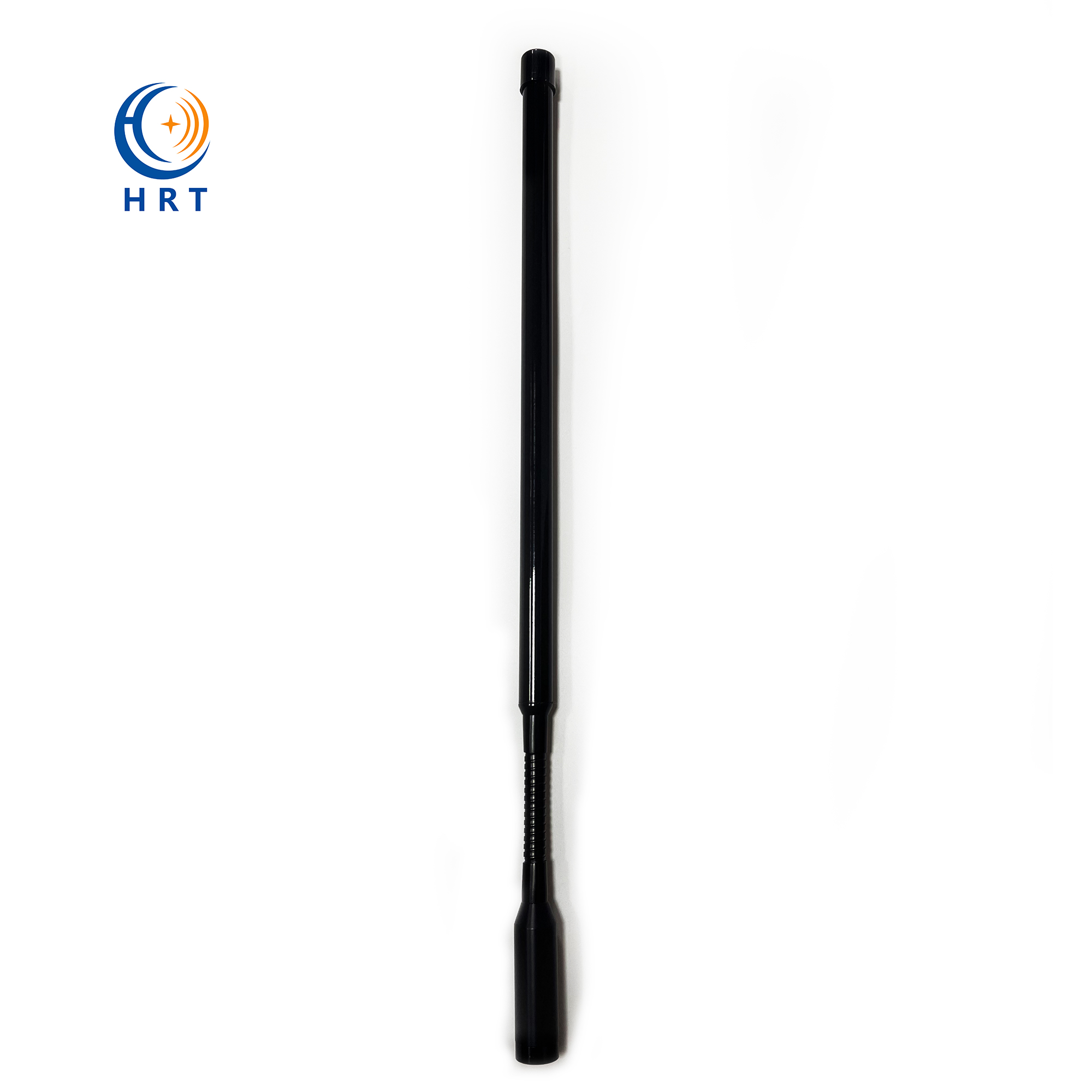

1.5G 7dbi Omnidirectional fiberglass gooseneck antenna
| 技术参数 | |
| Model 型号 | HRT-1400AH5 |
| Frequency range频率 -MHz | 1400-1500 |
| Bandwidth带宽-MHZ | 100 |
| Gain 增益-dbi | 5 |
| VSWR 电压驻波比 | ≤1.5 |
| Impedance输入阻抗-Ω | 50 |
| Polarization极化方式 | 垂直 |
| Max power最大功率-W | 20 |
| Connector接头 | TNC 公头 |
| Size 尺寸-mm | Φ16*480 |
| Weight 重量-g | 167 |

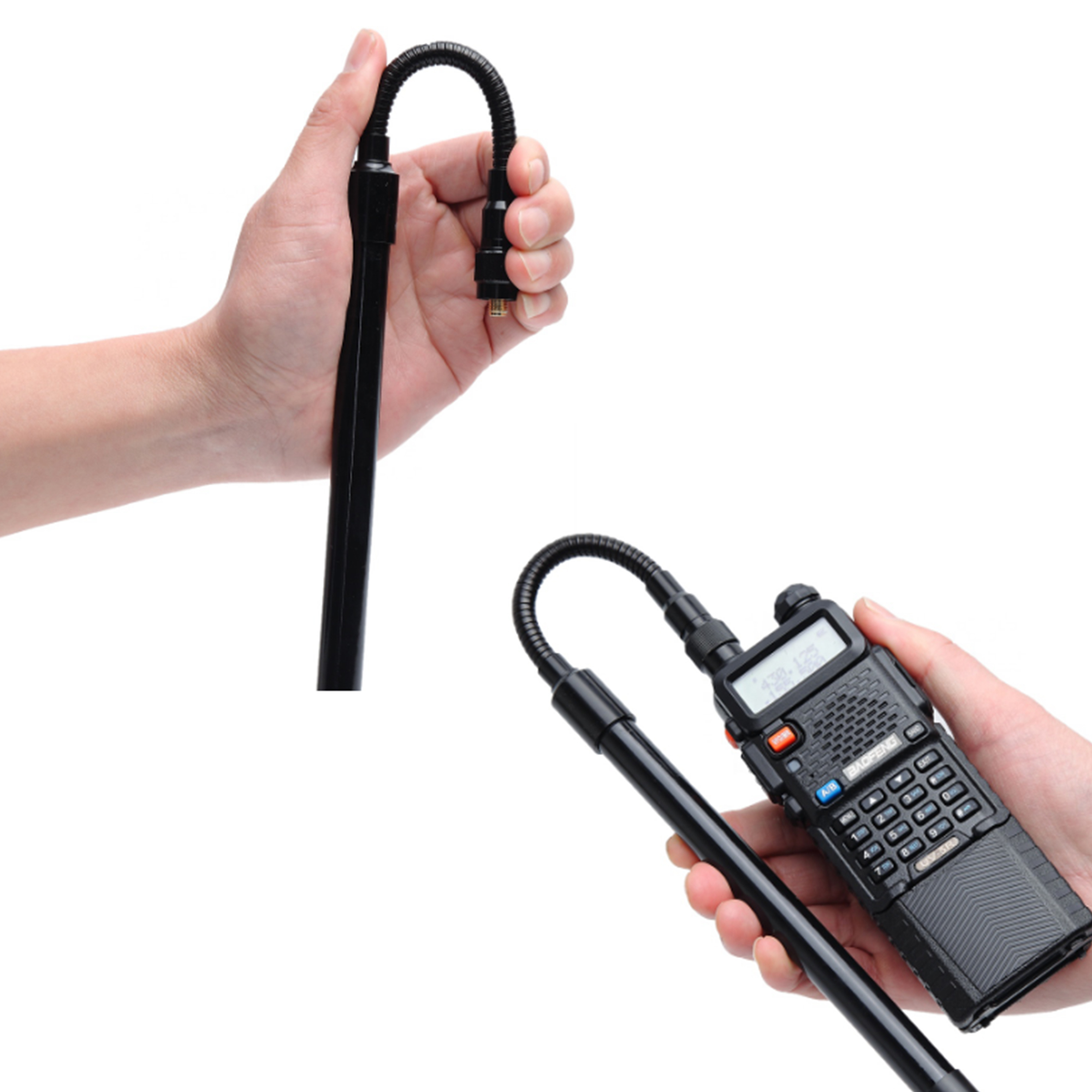

| 注： 天线底部为鹅颈结构，可灵活弯曲 The bottom of the antenna is gooseneck structure, which can be flexibly bent. | |
Product Description
Applications:
- 1400-1500MHz Band
- GPS Signal
- Point to multi-point
- Base station antenna
Features:
- High gain
- Broadband
- Low VSWR
- High quality
- Strong magnet base
