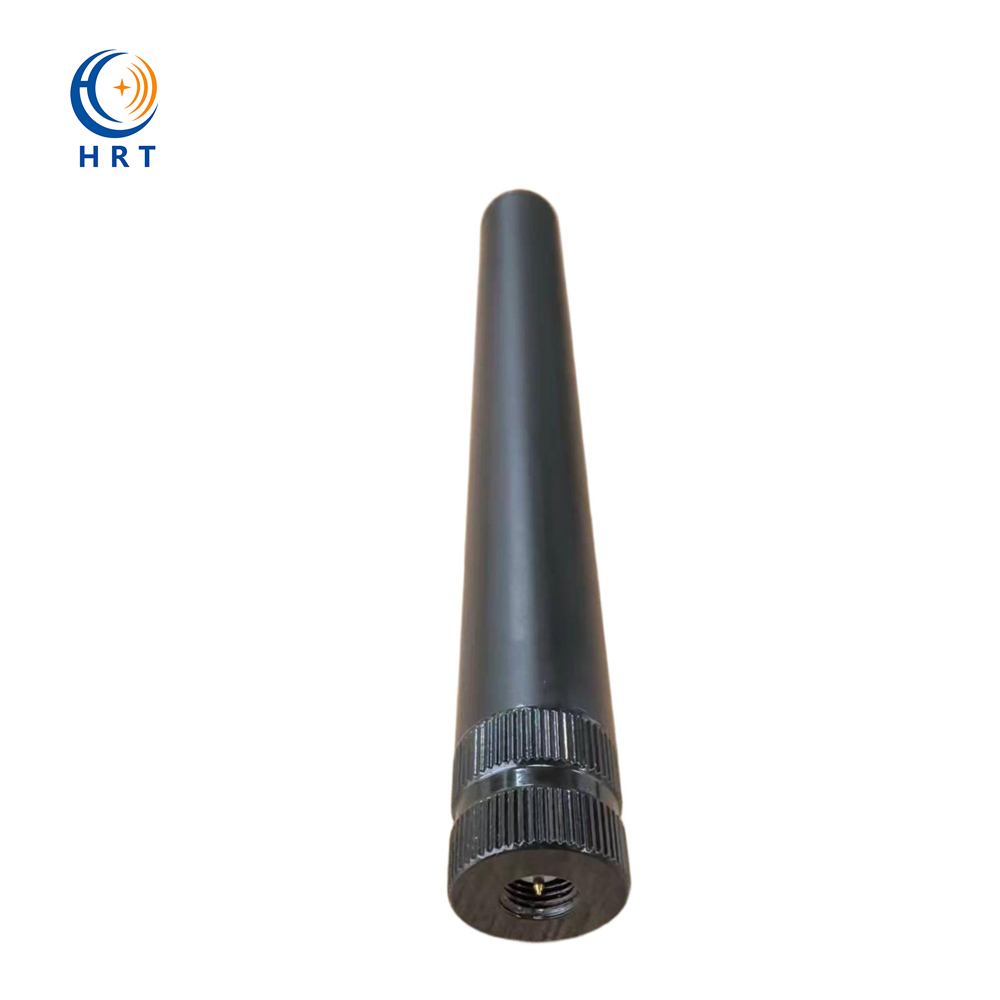

1300-1550MHz UAV Omni Fiberglass Antenna
| 类别
Category |
玻璃钢天线 |
| 型号
Model |
TQJ-1400AH3 |
| 频率范围
Frequency Range-MHZ |
1300-1550 |
| 带宽
Bandwidth-MHZ |
250 |
| 增益
Gain-dBi |
3 |
| 电压驻波比
VSWR |
≦2.0 |
| 标称阻抗
Nominal Impedance-Ω |
50 |
| 极化方式
Polarization |
垂直Vertical |
| 最大功率
Maximum Power-W |
100 |
| 尺寸
Dimension-mm |
Ø15x143mm |
| 重量
Weight-g |
45 |
| 接头型号
Connector |
TNC公头 |
| 工作温度Operation Temperature | -30°C to 80°C |
| 储存温度Storage Temperature | -30°C to 80°C |
Product Description
Applications:
- 1300-1550MHz Band
- GPS Signal
- Point to Multi-Point
- UAV antenna
Features:
- High gain
- Broadband
- Low VSWR
- High quality
- Lightweight material
