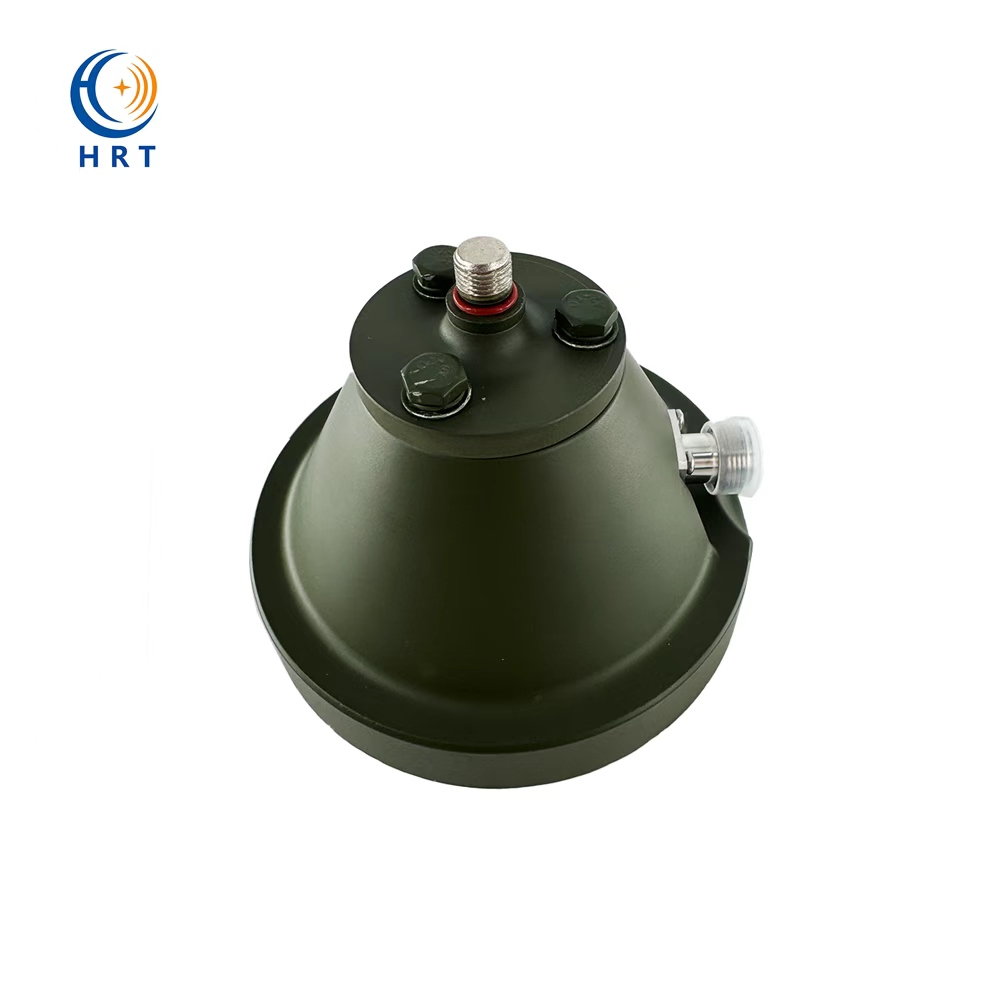

30-88MHz Vehicle Antenna
| 电气性能 ELECTRICAL | |
| 型号 Model | TQC-0388B |
| 频率范围Frequency Range-MHz | 30-88 |
| 带宽Bandwidth-MHz | 58 |
| 增益Gain-dBi | ≥-9dBi |
| 电压驻波比VSWR | ≤2 |
| 极化方式Polarization | 垂直 Vertical |
| 最大功主率Max power-W | 100 |
| 输入阻抗Nominal Impedance-Ω | 50 |
| 机械参数 MECHANICAL | |
| 接头型号Connector | N座 N-female |
| 天线尺寸 Antenna Dimension-mm | 1340 |
| 重量Weight-kg | 1 |
| 抗风强度Rated Wind Velocity-m/s | 60 |
| 安装夹码Mounting Kits | M120磁铁吸盘 M120Magnetic Base |
| 工作温度Working Temperature-℃ | -40~+70 |
Product Description
Applications:
- 30-88MHz Band
- FM/VHF Signal
- Point to multi-point
- Base station antenna
Features:
- High gain
- Broadband
- Low VSWR
- High quality
- Strong magnet base
