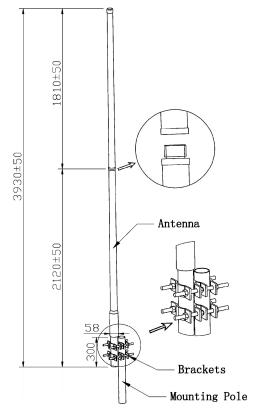

UHF 400MHz Omni Directional Fiberglass Antenna
| Model | TQJ-400AH10 |
| Frequency Range- MHz | 406-430 |
| Bandwidth -MHz | 24 |
| Gain -dBi | 10.2 |
| Horizontal Beamwidth ° | 360° |
| Vertical Beamwidth ° | 10° |
| VSWR | ≤ 1.8 |
| Polarization | Vertical |
| Max Power- W | 150 |
| Nominal Impedance-Ω | 50 |
| Connector | N female |
| Length-m | 3.9 |
| Antenna Weight- kg | 3.11 |
| Brackets Weight-kg | 2.20 |
| Rated Wind Velocity- m/s | 60 |
| Mounting Mast Diameter -mm | Φ40~50 |
Product Description
Applications:
- UHF400MHz Band
- Wireless Video System
- Point to multipoint
- Base station antenna
Features:
- High gain
- Low VSWR
- High quality fiberglass tube radome
- Steel mounting kit
- Mast mounting
